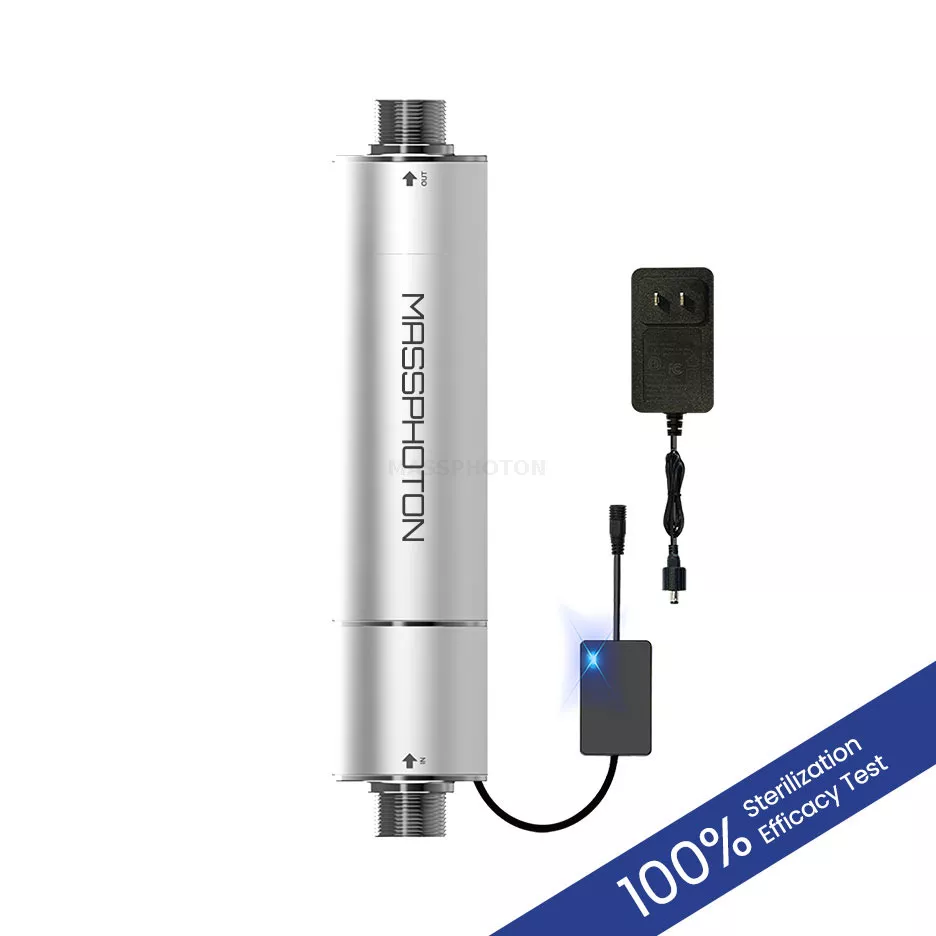

12 GPM UVC LED Water Disinfection system whole-house water purification MP-UVC-48LC
Product Description
As the authorized distributor of MASSPHOTON, we proudly offer the MP-UVC-48LC, a high-performance UVC LED Water Disinfection Module engineered for whole-house and commercial water treatment applications.
Designed for 48 L/min (2.8 TPH) continuous flow systems, the MP-UVC-48LC delivers powerful chemical-free and mercury-free water disinfection using advanced 270–280nm UVC LED technology. The module instantly achieves up to 99.999% (5-Log Reduction) against bacteria, viruses, and other harmful microorganisms without affecting water taste, odor, or quality.
Its compact stainless-steel construction, integrated flow switch, and energy-efficient operation make it the ideal solution for residential buildings, hotels, hospitals, commercial facilities, and industrial water treatment systems. Designed for long-term reliability, the MP-UVC-48LC combines high sterilization performance with low maintenance requirements, offering a sustainable alternative to traditional mercury UV lamps.
Product Highlights
High-Efficiency Sterilization
Advanced 270–280nm UVC LED technology provides up to 99.999% pathogen reduction, effectively inactivating bacteria, viruses, Salmonella, E. coli, influenza viruses, and other microorganisms.
Instant Flow-Through Disinfection
Water is disinfected immediately as it flows through the module without storage tanks or chemical treatment, ensuring continuous protection.
Safe & Durable Construction
Fully sealed UV-resistant design with corrosion-resistant materials ensures reliable performance in demanding operating conditions.
Long Lifetime & Low Energy Consumption
The UVC LED source delivers more than 15,000 operating hours while consuming significantly less power than conventional mercury lamp systems.
Application Scenarios
The MP-UVC-48LC is ideal for centralized water disinfection systems requiring reliable, continuous protection.
- Residential Apartments
- Hotels & Hospitality
- Hospitals & Healthcare Facilities
- Food & Beverage Processing
- Agricultural Water Systems
- Commercial Buildings
- Whole-House Water Purification Systems
- Central Water Supply Networks
Why Choose MP-UVC-48LC?
- Mercury-Free UVC LED Technology
- Chemical-Free Water Treatment
- Up to 99.999% (5-Log) Disinfection Efficiency
- Compact & Easy Main-Inlet Installation
- Built-in Flow Switch
- Low Operating Cost
- Long Service Life
- Eco-Friendly Solution
- Stable Continuous Operation
- Suitable for Residential & Commercial Applications
Technical Parameters
| Specification | MP-UVC-48LC |
|---|---|
| Flow Rate | 48 L/min (2.8 TPH) |
| Input Voltage | 100–240V AC, 50/60Hz |
| Total Power | 26W |
| Power Supply | Adapter |
| UV-C Wavelength | 270–280 nm |
| Product Lifetime | ≥15,000 Hours |
| Disinfection Efficiency | Up to 99.999% (5.0 Log Reduction) |
| Flow Switch | Built-in |
| Connection Size | 1″ MNPT |
| Inlet / Outlet Material | Stainless Steel |
| Operating Pressure | 0.1–0.8 MPa (14–116 psi) |
| Operating Water Temperature | 5°C – 40°C |
| Dimensions | Φ70 × 338.5 mm |
Actual disinfection performance depends on water quality, flow conditions, and installation environment.
Download
Download the complete MP-UVC-48LC Technical Datasheet to view full specifications, installation guidelines, certification details, and performance information.
As the authorized distributor of MASSPHOTON, we provide genuine MP-UVC-48LC UVC LED Water Disinfection Modules backed by professional technical consultation, product selection assistance, and after-sales support for residential, commercial, and industrial water treatment projects.
